使用神经网络的手写数字识别

介绍

手写数字识别是在深度学习的计算机视觉中广泛使用的图像识别的一部分。图像识别是深度学习中每个图像或视频相关任务的非常基本和初步的阶段。本文概述了手写数字识别的概念以及如何将图像识别扩展到多类分类。

在继续之前让我们了解二进制和多类图像分类的区别。

二进制图像分类

在二进制图像分类中，模型有两个类别可以预测。例如在猫和狗的分类中。

多类图像分类

在多类图像分类中，模型有多个类别可以预测。例如，在FashionMNIST或手写数字识别的分类中，有10个类别可以预测。

手写数字识别

使用神经网络的手写数字识别

这个任务是多类图像分类的一种情况，模型预测输入图像所属的数字之一，从0到9。

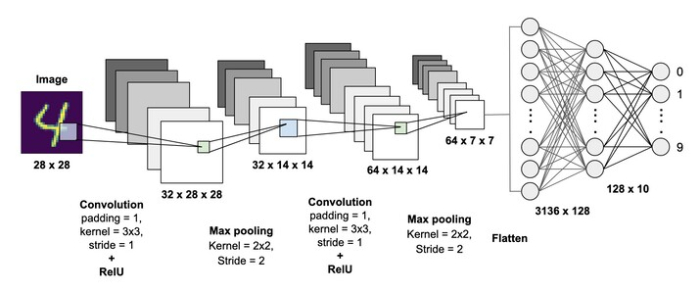

在MNIST手写数字识别任务中，我们使用CNN网络来开发一个能够识别手写数字的模型。我们会下载MNIST数据集，其中包含60000个训练图像和10000个测试图像。每个图像被裁剪为28×28像素，手写的数字范围从0到9。

使用Python实现

示例

## Digit Recognition

import keras
from keras.layers import Conv2D, MaxPooling2D
from keras.models import Sequential
from keras import backend as K
from keras.datasets import mnist
from keras.utils import to_categorical
from keras.layers import Dense, Dropout, Flatten
import matplotlib.pyplot as plt
%matplotlib inline

fig = plt.figure
n_classes = 10
input_shape = (28, 28, 1)
batch_size = 128
num_classes = 10
epochs = 10

(X_train, Y_train), (X_test, Y_test) = mnist.load_data()
print("Training data shape {} , test data shape {}".format(X_train.shape, Y_train.shape))

img = X_train[1]

plt.imshow(img, cmap='gray')
plt.show()

X_train = X_train.reshape(X_train.shape[0], 28, 28, 1)
X_test = X_test.reshape(X_test.shape[0], 28, 28, 1)

Y_train = to_categorical(Y_train, n_classes)
Y_test = to_categorical(Y_test, n_classes)
X_train = X_train.astype('float32')
X_test = X_test.astype('float32')
X_train /= 255
X_test /= 255
print('x_train shape:', X_train.shape)
print('train samples ',X_train.shape[0],)
print('test samples',X_test.shape[0])

model = Sequential()
model.add(Conv2D(32, kernel_size=(3, 3),activation='relu',input_shape=input_shape))
model.add(Conv2D(64, (3, 3), activation='relu'))
model.add(MaxPooling2D(pool_size=(2, 2)))
model.add(Dropout(0.25))
model.add(Flatten())
model.add(Dense(256, activation='relu'))
model.add(Dropout(0.5))
model.add(Dense(num_classes, activation='softmax'))
model.compile(loss=keras.losses.categorical_crossentropy,optimizer=keras.optimizers.Adadelta(),metrics=['accuracy'])

history = model.fit(X_train, Y_train,batch_size=batch_size,epochs=epochs,verbose=1,validation_data=(X_test, Y_test))

output_score = model.evaluate(X_test, Y_test, verbose=0)
print('Testing loss:', output_score[0])
print('Testing accuracy:', output_score[1])

输出

Training data shape (60000, 28, 28) , test data shape (60000,)

使用神经网络的手写数字识别

x_train shape: (60000, 28, 28, 1)
train samples  60000
test samples 10000
Epoch 1/10
469/469 [==============================] - 13s 10ms/step - loss: 2.2877 - accuracy: 0.1372 - val_loss: 2.2598 - val_accuracy: 0.2177
Epoch 2/10
469/469 [==============================] - 4s 9ms/step - loss: 2.2428 - accuracy: 0.2251 - val_loss: 2.2058 - val_accuracy: 0.3345
Epoch 3/10
469/469 [==============================] - 5s 10ms/step - loss: 2.1863 - accuracy: 0.3062 - val_loss: 2.1340 - val_accuracy: 0.4703
Epoch 4/10
469/469 [==============================] - 5s 10ms/step - loss: 2.1071 - accuracy: 0.3943 - val_loss: 2.0314 - val_accuracy: 0.5834
Epoch 5/10
469/469 [==============================] - 4s 9ms/step - loss: 1.9948 - accuracy: 0.4911 - val_loss: 1.8849 - val_accuracy: 0.6767
Epoch 6/10
469/469 [==============================] - 4s 10ms/step - loss: 1.8385 - accuracy: 0.5744 - val_loss: 1.6841 - val_accuracy: 0.7461
Epoch 7/10
469/469 [==============================] - 4s 10ms/step - loss: 1.6389 - accuracy: 0.6316 - val_loss: 1.4405 - val_accuracy: 0.7825
Epoch 8/10
469/469 [==============================] - 5s 10ms/step - loss: 1.4230 - accuracy: 0.6694 - val_loss: 1.1946 - val_accuracy: 0.8078
Epoch 9/10
469/469 [==============================] - 5s 10ms/step - loss: 1.2229 - accuracy: 0.6956 - val_loss: 0.9875 - val_accuracy: 0.8234
Epoch 10/10
469/469 [==============================] - 5s 11ms/step - loss: 1.0670 - accuracy: 0.7168 - val_loss: 0.8342 - val_accuracy: 0.8353
Testing loss: 0.8342439532279968
Testing accuracy: 0.8353000283241272
